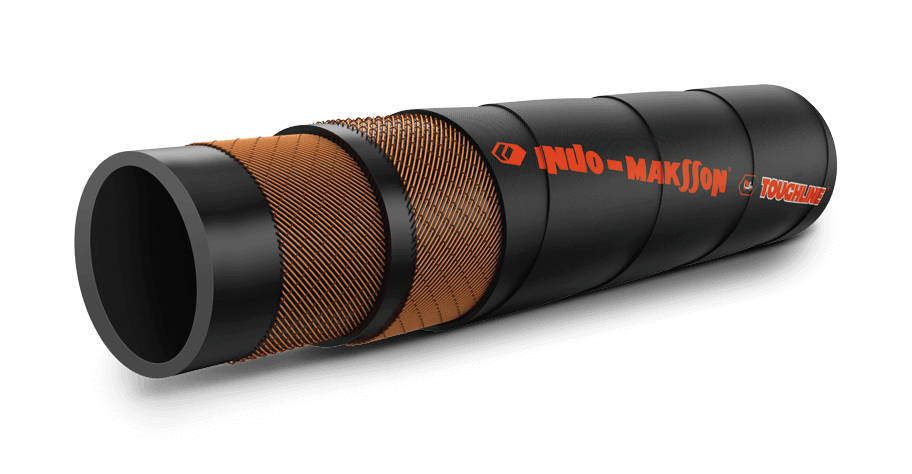

Sand Blast Hose 12
ID
OD
Working Pressure
Bursting Pressure
Max. Coll Length
MM
INCH
MM
BAR
PSI
BAR
PSI
MTR.
20
¾
34
12
175
36
525
LL
25
1
40
12
175
36
525
40
31
1¼
48
12
175
36
525
40
38
1½
54
12
175
36
525
40
50
2
72
12
175
36
525
40
63
2½
82
12
175
36
525
40
75
3
96
12
175
36
525
40
TUBE:
Specially compounded abrasion resistant natural rubber, high resilience
REINFORCEMENT:
High tensile synthetic plies with copper wire
COVER:
Black abrasion resistant natural rubber cover. Wrap Finish.
TEMP RANGE:
-40°C to +70°C Approx
APPLICATIONS:
For shot and sand blasting applications that help in clearing metal surfaces, etching glass or smoothing casting.
PROPERTIES:
High Abrasion Resistance | Seamless Uniform Thickness | Flexible | also availbale in 20 Bar WP
APPLICABLE STANDARDS:
IS 5894
STANDARD COLOUR:
Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE:
Indo-Maksson Tough Line Sandblast Hose 12 I.D. W.P. India
