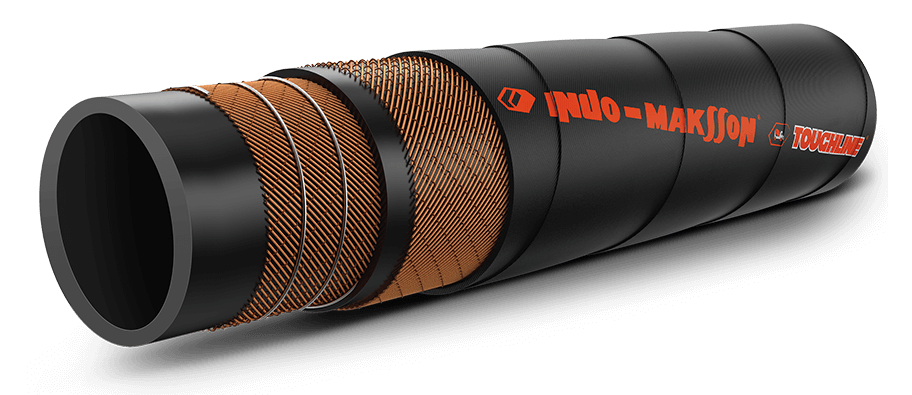

BULK MATERIAL SUCTION & DISCHARGE HOSE 20

ID

OD

Working Pressure

Bursting Pressure

Weight

Max. Coll Length
MM INCH MM BAR PSI BAR PSI KG MTR.
32 1.1/4 43 20 300 60 870 0.98 40
38 1.1/2 50 20 300 60 870 1.30 40
51 2 63 20 300 60 870 1.80 40
64 2.1/2 76 20 300 60 870 2.26 40
76 3 90 20 300 60 870 3.12 40
102 4 121 20 300 60 870 5.40 40
127 5 148 20 300 60 870 7.27 40
152 6 172 20 300 60 870 8.60 40
  • TUBE: Specially compounded abrasion resistant rubber, high resiliant
  • REINFORCEMENT: High tensile synthetic plies with helix wire and copper wire
  • COVER: Black abrasion resistant rubber cover.
  • TEMP RANGE: -40°C +70°C Approx
  • APPLICATIONS: For suction and discharge of bulk material like cement,gravel and sand etc. in consutruction industry
  • PROPERTIES: High Abrasion Resistance | Seamless Uniform Thickness | Flexible
  • APPLICABLE STANDARDS: Indo-Maksson Propietory
  • STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
  • MARKING ON THE HOSE: Indo-Maksson Tough Line - Slurry Suction Hose I.D. W.P. Made in India
BULK MATERIAL SUCTION & DISCHARGE HOSE 20
