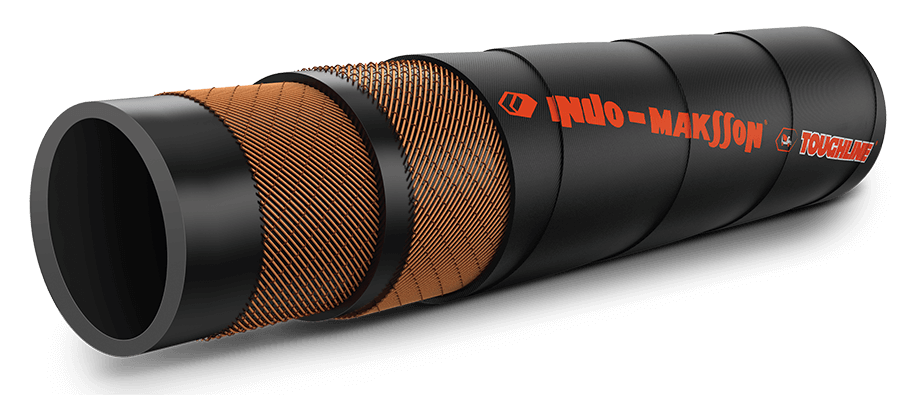

BULK MATERIAL DELIVERY HOSE 10

ID

OD

Working Pressure

Bursting Pressure

Weight

MM INCH MM BAR PSI BAR PSI MTR.
32 1.1/4 43 10 150 30 450 0.88
38 1.1/2 50 10 150 30 450 1.07
51 2 63 10 150 30 450 1.45
64 2.1/2 76 10 150 30 450 1.85
76 3 91 10 150 30 450 2.06
88 3.1/2 104 10 150 30 450 3.23
102 4 120 10 150 30 450 4.30
127 5 145 10 150 30 450 5.16
  • TUBE: Specially compounded abrasion resistant rubber, high resiliant
  • REINFORCEMENT: High tensile synthetic plies with copper wire
  • COVER: Black abrasion resistant rubber cover. Wrap Finish.
  • TEMP RANGE: -30°C to +70°C Approx
  • APPLICATIONS: Delivery hose for concrete, sand, gravel and general abrasive dry materials. Also used in cement/plaster/sand placement in construction industry.
  • PROPERTIES: High Abrasion Resistance | Seamless Uniform Thickness | Flexible
  • STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
  • MARKING ON THE HOSE: Indo-Maksson - Bulk Material Delivery Hose I.D. W.P. Made in India
