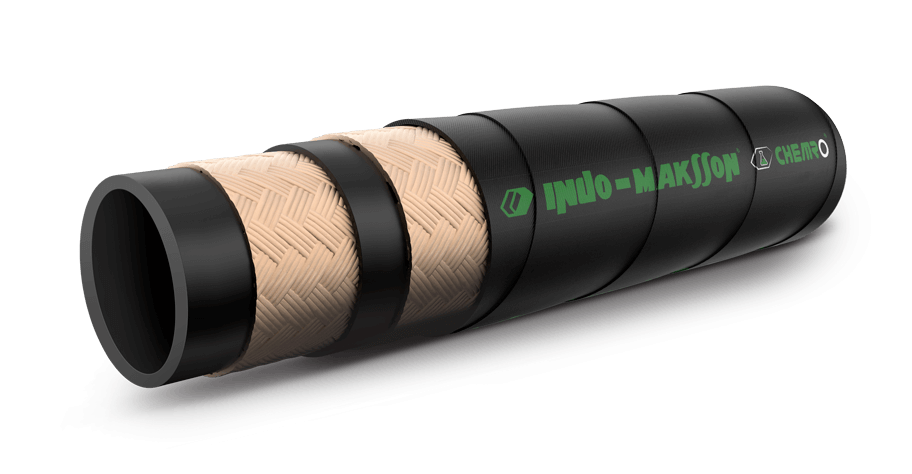

Chemical Hose LL

ID		OD	Working Pressure		Bursting Pressure		Bending Radius		Max. Coll Length
MM	INCH	MM	BAR	PSI	BAR	PSI	MM	INCH	MTR
19	3/4	31	12	170	48	700	152	6	100+
25	1	38	12	170	48	700	203	8	100+
31	1.1/4	45	12	170	48	700	215	9	50
38	1.1/2	52	12	170	48	700	254	10	50
50	2	66	12	170	48	700	355	14	40

TUBE: Synthetic rubber tube, EPDM, White & Black
REINFORCEMENT: Braided high tensile yarn
COVER: Perforated synthetic rubber cover, EPDM
TEMP RANGE: -30°C to +100°C
APPLICATIONS: For conveyance of a wide range of chemcials such as acid alkalies inorganic in salt and alcoholic materials
PROPERTIES: Chemical resistant | Uniform Thickness | Flexible
APPLICABLE STANDARDS: Exceeds IS 7654 Type 2
STANDARD COLOUR: Inner Tube - Black, White | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Multi Purpose Chemical Hose I.D. W.P. India
