BULK MATERIAL SUCTION & DISCHARGE HOSE 10

ID

OD

Working Pressure

Bursting Pressure

Bending Radius

Max. Coll Length

MM INCH MM BAR PSI BAR PSI BAR MTR.
31 44 10 150 30 435 190 40
38 51 10 150 30 435 230 40
50 2 64 10 150 30 435 310 40
63 78 10 150 30 435 380 40
75 3 91 10 150 30 435 460 40
100 4 119 10 150 30 435 610 40
125 5 146 10 150 30 435 760 40
150 6 173 10 150 30 435 920 40

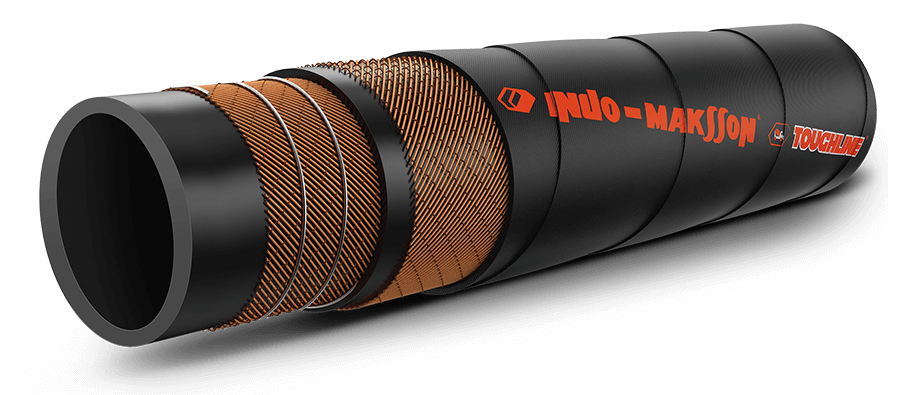

  • TUBE: Specially compunded abrasion resistant rubber, high resiliant
  • REINFORCEMENT: High tensile synthetic plies with helix wire and copper wire
  • COVER: Black abrasion resistant rubber cover. Wrap Finish
  • TEMP RANGE: -40°C +70°C Approx
  • APPLICATIONS: For suction and discharge of bulk material like cement,gravel and sand etc. in consutruction industry
  • PROPERTIES: High Abrasion Resistance | Seamless Uniform Thickness | Flexible
  • APPLICABLE STANDARDS: Indo-Maksson Propietory
  • STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
  • MARKING ON THE HOSE: Indo-Maksson Tough Line - Slurry Suction Hose I.D. W.P. Made in India
