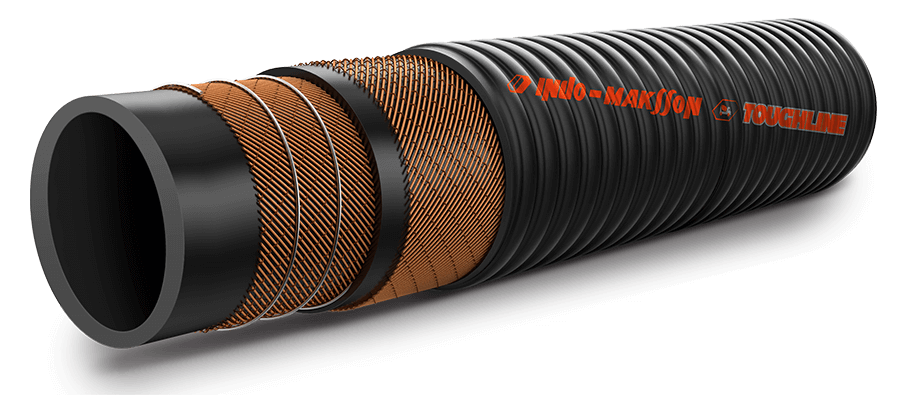

BULK MATERIAL SUCTION & DISCHARGE HOSE 20 (CORRUGATED COVER)
ID
OD
Working Pressure
Bursting Pressure
Weight
Max. Coll Length
MM
INCH
MM
BAR
PSI
BAR
PSI
KG
MTR.
32
1.1/4/4
43
20
300
60
870
0.98
40
38
1.1/2/2
50
20
300
60
870
1.30
40
51
2
63
20
300
60
870
1.80
40
64
2.1/2/2
76
20
300
60
870
2.26
40
76
3
90
20
300
60
870
3.12
40
102
4
121
20
300
60
870
5.40
40
127
5
148
20
300
60
870
7.27
40
152
6
172
20
300
60
870
8.60
40
TUBE:
Specially compounded abrasion resistant rubber, high resiliant
REINFORCEMENT:
High tensile synthetic plies with helix wire and copper wire
COVER:
Black abrasion resistant rubber cover. Corrugation for extra flexibility
TEMP RANGE:
-40°C +70°C Approx
APPLICATIONS:
For suction and discharge of bulk material like cement,gravel and sand etc. in consutruction industry
PROPERTIES:
High Abrasion Resistance | Seamless Uniform Thickness | Flexible
APPLICABLE STANDARDS:
Indo-Maksson Propietory
STANDARD COLOUR:
Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE:
Indo-Maksson Tough Line - Slurry Suction Hose I.D. W.P. Made in India
