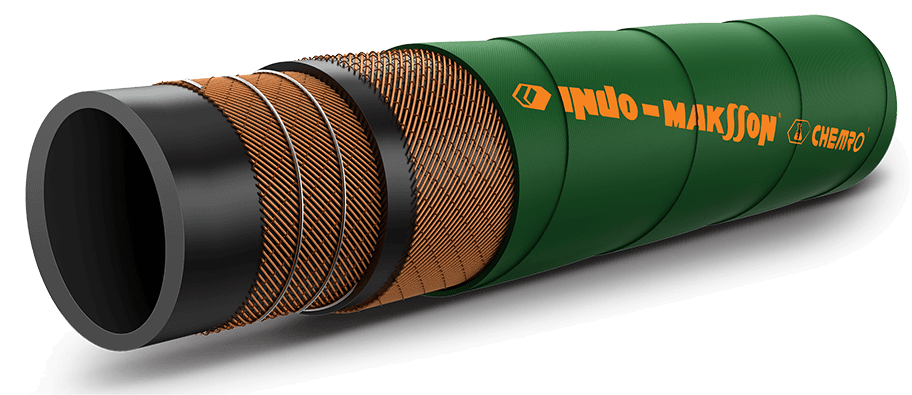

CHEMICAL SUCTION & DISCHARGE HOSE (XLPE)

ID

OD

Working Pressure

Bursting Pressure

Max. Coll Length

MM INCH MM BAR PSI BAR PSI MTR
25 1 35 17 240 51 720 40
31 1.1/4 43 17 240 51 720 40
38 1.1/2 50 17 240 51 720 40
50 2 66 17 240 51 720 40
63 2.1/2 79 17 240 51 720 40
75 3 93 17 240 51 720 40
100 4 118 17 240 51 720 40
100 5 146 17 240 51 720 40
100 6 172 17 240 51 720 40
  • TUBE: Translucent, non-conductive XLPE Lining
  • REINFORCEMENT: High tensile synthetic plies with helical wire
  • COVER: Synthetic rubber cover, EPDM
  • TEMP RANGE: -20°C to +120°C (Intermittent)
  • APPLICATIONS: Delivery hose for aggresive chemical products such as acid alkalies inorganic salt and alcoholic materials
  • PROPERTIES: 99% Chemical resistant | Uniform Thickness | Flexible
  • STANDARD COLOUR: Inner Tube - Translucent XL-PE lining, White Outer Cover - Black
  • MARKING ON THE HOSE: Indo-Maksson - Chemro Chemical Hose S & D -XLPE I.D. W.P. India
