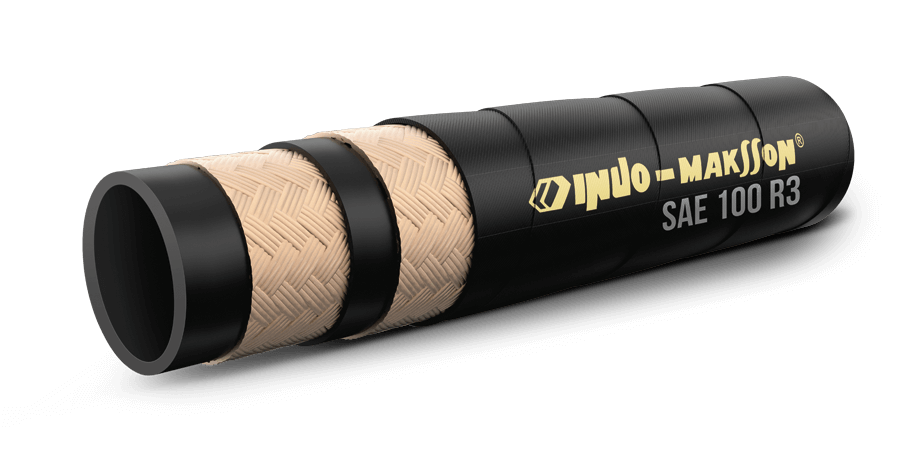

SAE 100 R3

ID		OD	Working Pressure		Bursting Pressure		Bending Radius		Weight	Max. Length
MM	INCH	MM	BAR	PSI	BAR	PSI	MM	INCH	KG/MTR	MTR
6.00	1/4	14.30	87	1250	348	5046	76	3.00	0.16	100+
8.00	5/16	17.50	84	1218	336	4872	101	4.00	0.24	100+
10.00	3/8	19.10	78	1131	312	4524	101	4	0.28	100+
12.00	1/2	23.50	70	1015	280	4060	127	5.00	0.38	100+
16.00	5/8	27.00	61	885	244	3538	140	5.50	0.45	100+
20.00	3/4	31.80	52	754	208	3016	152	6.00	0.63	100+
25.00	1	38.00	39	566	156	2250	205	8.00	0.75	100
31.00	1.1/4	44.50	26	377	104	1500	254	10.00	0.97	50

TUBE: Black, oil-resistant synthetic rubber (NBR)
REINFORCEMENT: Double braided high tensile yarn
COVER: Black, oil and abrasion-resistant synthetic rubber
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: For medium pressure Hydraulic Lines applied in various applications like earthmoving and other adjecent industries
PROPERTIES: Uniform Thickness | High Pressure | Flexible
APPLICABLE STANDARDS: SAE 100 R3/DIN EN854
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - SAE 100 R3 I.D. W.P. Made in India
