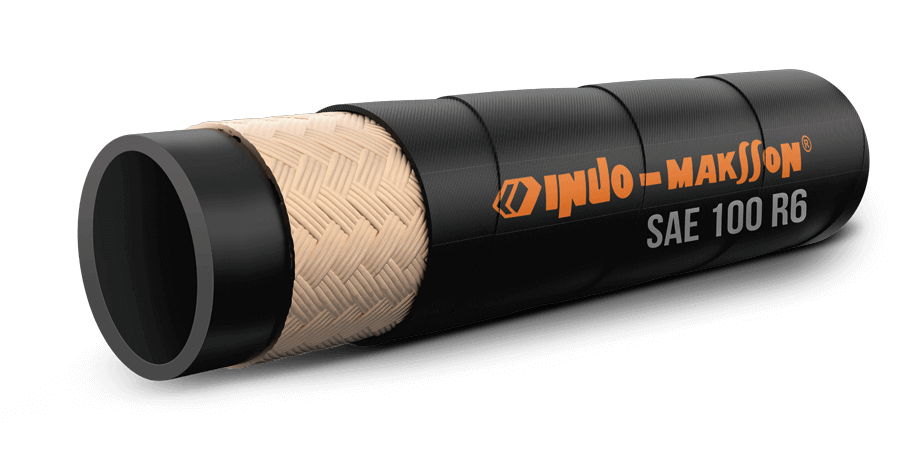

SAE 100 R6

ID		OD	Working Pressure		Bursting Pressure		Bending Radius		Weight	Max. Length
MM	INCH	MM	BAR	PSI	BAR	PSI	MM	INCH	KG/MTR	MTR
6.00	1/4	12.70	28	406	112	1624	65	2.6	0.13	100+
8.00	5/16	14.30	28	406	112	1624	75	3.0	0.15	100+
10.00	3/8	16.00	28	406	112	1624	75	3.0	0.18	100+
12.00	1/2	19.80	28	406	112	1624	100	3.9	0.28	100+
16.00	5/8	23.10	24	348	97	1400	125	4.9	0.32	100+
20.00	3/4	26.60	21	305	83	1392	150	5.9	0.43	100+
25.00	1	32.50	14	210	56	1218	200	7.9	0.56	100

TUBE: Black, oil-resistant synthetic rubber (NBR)
REINFORCEMENT: Single braided high tensile yarn
COVER: Black, oil and abrasion-resistant synthetic rubber
TEMP RANGE:-40°C to +100°C Approx
APPLICATIONS: For low pressure Hydraulic Lines applied in various applications like earthmoving and other adjecent industries
PROPERTIES: Uniform Thickness | High Pressure | Flexible
APPLICABLE STANDARDS: SAE 100 R6/DIN EN854
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - SAE 100 R6 I.D. W.P. Made in India
