2TE

ID		OD	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM	INCH
6.60	1/4	13.40	75	365	300	4350	40	1.6
8.10	5/16	14.90	70	290	275	3990	50	2.0
9.00	3/8	16.50	65	290	255	3700	60	2.4
13.00	1/2	19.70	15	220	235	3410	70	2.8
16.10	5/8	23.90	15	220	200	2900	90	3.5
19.30	3/4	27.00	12.5	180	180	2610	180	4.3
25.80	1	34.40	12.5	180	160	2320	160	6.2

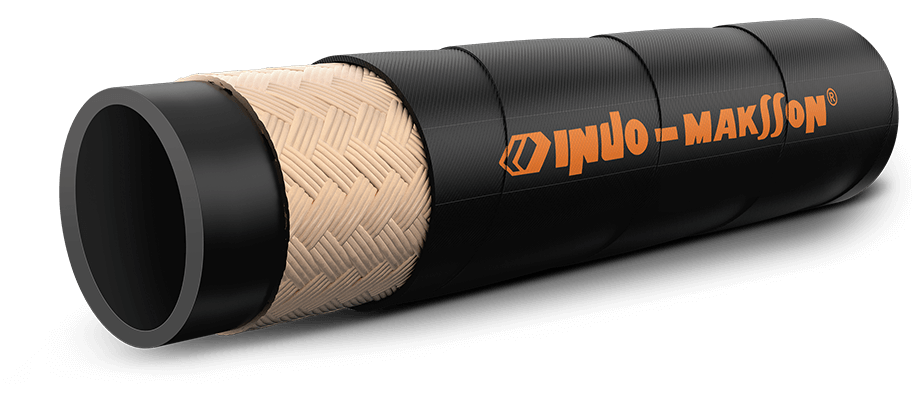

TUBE: Special compound of synthetic rubber, Black
REINFORCEMENT: Single textile braid
COVER: Specially compounded abrasion, weather, oil & ozone resistant black synthetic rubber
TEMP RANGE: -40°C to +100°C
APPLICATIONS: For low pressure hydraulic lines using petroleum, synthetic or oil baased fluids in hydraulic systems.Used in hydraullic, agriculture & stationary systems.
PROPERTIES: Oil Resistant | Light Weight | Flexible
APPLICABLE STANDARDS: EN 854 - 2TE
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - 2TE Hose I.D. W.P. Made in India
