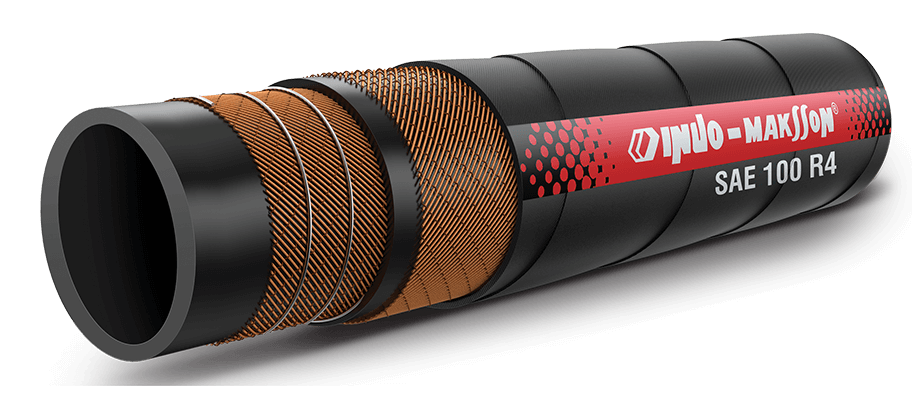

SAE 100 R4

ID		OD	Working Pressure		Bursting Pressure		Bending Radius		Max. Length
MM	INCH	MM	BAR	PSI	BAR	PSI	INCH	MM	MTR
25.40	1"	38.00	17	250	70	1015	2.95	75	40
31.80	1.1/4"	45.00	14	200	56	812	4.13	105	40
38.50	1.1/2"	52.00	11	160	44	638	4.92	125	40
45.00	1.3/4"	56.00	10	150	30	450	5.91	150	40
50.80	2"	63.60	7	100	28	406	5.91	150	40
63.40	2.1/2"	76.20	4	60	16	232	7.09	180	40
76.00	3"	90.00	4	60	16	232	9.45	240	40
88.00	3.1/2"	103.00	3	40	12	174	10.24	260	40
101.60	4"	116.00	3	40	12	174	11.81	300	40

TUBE: Black colour, synthetic rubber resistant to oil
REINFORCEMENT: Synthetic Yarn fabric with Steel Wire Helix
COVER: Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone.
TEMP RANGE: -40°C Approx to +100°C continuous
APPLICATIONS: For suction return line of Hydraulic Oil in Industrial and Earthmoving Equipment
PROPERTIES: Oil Resistant | Seamless | Uniform Thickness | Flexible
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
APPLICABLE STANDARDS: SAE J517 - 100R4
MARKING ON THE HOSE: Indo-Maksson SAE 100 R4 I.D. W.P. India
