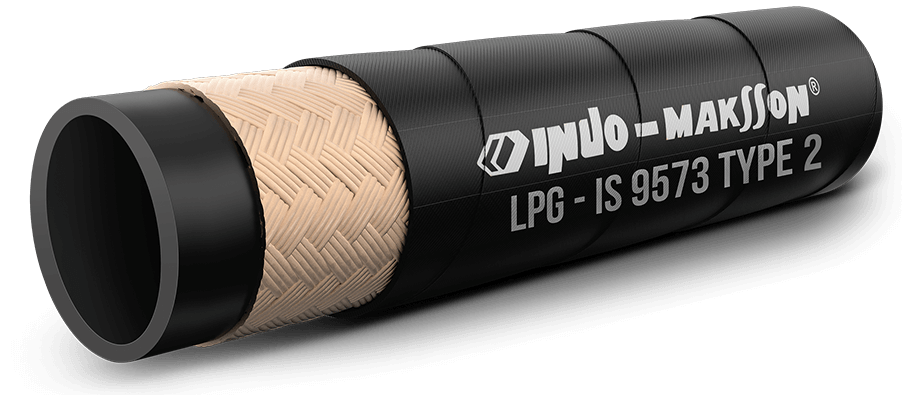

LPG HOSE - IS 9573 - TYPE 2

ID		OD	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM	INCH
9.5	3/8	16.9	25	363	100	1450	95	3.7
12.7	1/2	20.8	25	363	100	1450	120	4.7
15.9	5/8	23.5	25	363	100	1450	152	6.0
19.1	3/4	26.5	25	363	100	1450	152	6.0

TUBE: Black, Low permiation oil and fuel resistant synthetic rubber (NBR)
REINFORCEMENT: Single braided high tensile steel wire
COVER: Orange, oil, abrasion and weather resistant synthetic rubber
TEMP RANGE: -40°C to +70°C
APPLICATIONS: For Use in domestic and commercial LPG installations
PROPERTIES: Uniform Thickness | High Pressure | Flexible
APPLICABLE STANDARDS: IS : 9573:2012
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - IS : 9573:2012 I.D. W.P. Made in India
